C#开发跨平台游戏——游戏中使用多张图片实现动画
上一篇我们讲了游戏中使用背景音乐和按钮音效，今天我们来讲解如何使用多张连续图片实现游戏中的动画。
首先下载连续的动画图: Joy.zip ,下载后解压文件。将整个Jay文件夹复制到【HelloWorld.XNAContent】项目中，

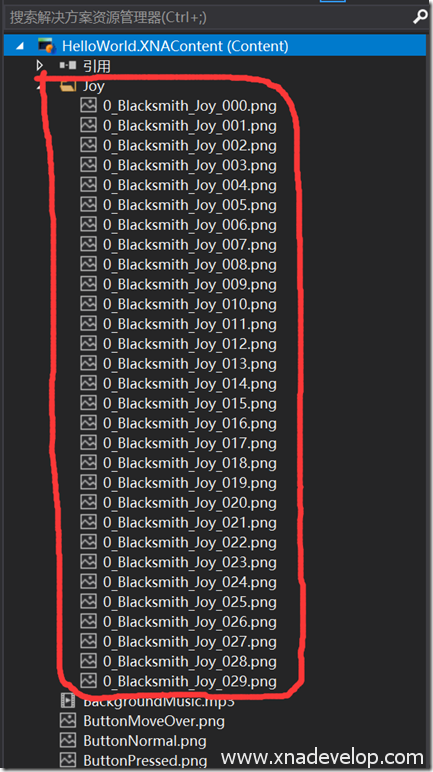

点开【HelloWorld.XNAContent】项目中【Jay】目录，注意这些图片的前半部分的名字是一样的，不一样的是后面带数字的部分。
打开Game1.cs，找到上一篇提到的【SoundEffect buttonPressedSound;//定义按钮音效】，在它下面定义一个列表来存放这些图片:
List<Texture2D> blacksmithJoyTextures;//定义图片列表
定义一个矩形来控制动画显示的位置和大小，由于动画是多张图片快速切换形成的，所以这个矩形只需要一个。
Rectangle blacksmithJoyRect;
定义动画的当前显示的图片索引，也就是当前显示的图片是第几张加1
int currentFrame = 0;// 当前图片索引
找到【LoadContent()】方法，在方法体内实例化图片列表并用一个for循环来加载图片纹理，这里有个规律当小于10的情况下，图片名称的最后是00i，大于等于10为0i。
blacksmithJoyTextures = new List<Texture2D>();
for(int i=0;i<30;i++)
{
Texture2D blacksmithJoyTexture;
if (i < 10)
{
blacksmithJoyTexture = Content.Load<Texture2D>("Joy/0_Blacksmith_Joy_00" + i);
}
else
{
blacksmithJoyTexture = Content.Load<Texture2D>("Joy/0_Blacksmith_Joy_0" + i);
}
blacksmithJoyTextures.Add(blacksmithJoyTexture);
}
同时初始化动画的位置和大小 X轴100，Y轴100，大小是200的正方形
blacksmithJoyRect = new Rectangle(100, 100, 200, 200);
接着，找到【Draw(GameTime gameTime)】，找到【spriteBatch.Draw(mouseCursor,mouseCursorPosition,Color.White);】在它的前面输入
spriteBatch.Draw(blacksmithJoyTextures[currentFrame], blacksmithJoyRect, Color.White);

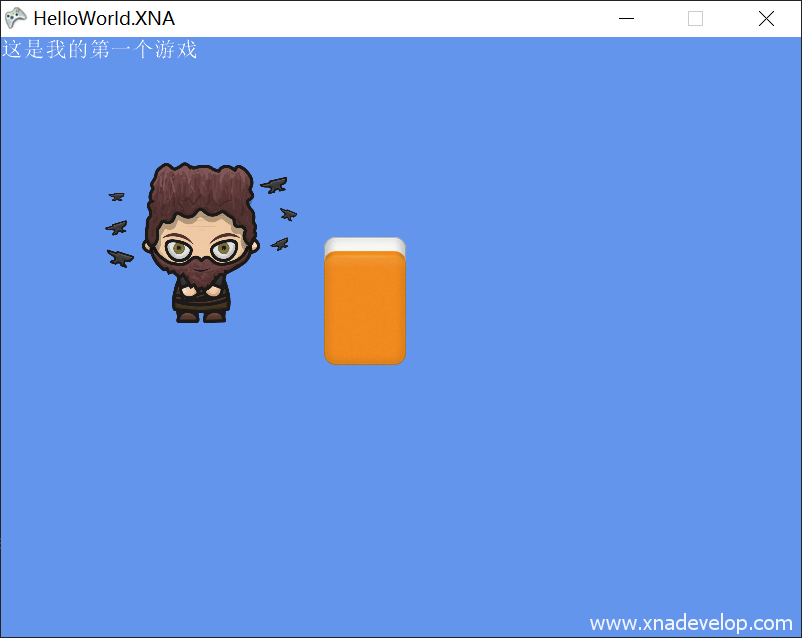

来画出当前显示的图片，由于currentFrame是0，所以显示的是第一帧。目前还不会动。
下面我们让它动起来，找到【Update(GameTime gameTime)】方法，在方法体内加入
if (currentFrame >= blacksmithJoyTextures.Count - 1)//判断当前图片是否是最后一张
{
currentFrame = 0;是最后一张显示第一张图片
}
else
{
currentFrame += 1;不是最后一张，就显示下一张
}
完整代码如下：
using System;
using System.Collections.Generic;
using System.Linq;
using Microsoft.Xna.Framework;
using Microsoft.Xna.Framework.Audio;
using Microsoft.Xna.Framework.Content;
using Microsoft.Xna.Framework.GamerServices;
using Microsoft.Xna.Framework.Graphics;
using Microsoft.Xna.Framework.Input;
using Microsoft.Xna.Framework.Media;
namespace HelloWorld.XNA
{
/// <summary>
/// This is the main type for your game
/// </summary>
public class Game1 : Microsoft.Xna.Framework.Game
{
GraphicsDeviceManager graphics;
SpriteBatch spriteBatch;
SpriteFont defaultFont;
Color backgoundColor;
Texture2D mouseCursor;
Vector2 mouseCursorPosition;
Texture2D buttonNormal;
Texture2D buttonMoveOver;
Texture2D buttonPressed;
Rectangle buttonRect;
Texture2D button;
Song backgroundMusic;//定义背景音乐
SoundEffect buttonPressedSound;//定义按钮音效
List<Texture2D> blacksmithJoyTextures;//定义图片列表
Rectangle blacksmithJoyRect;//动画的位置及大小
int currentFrame = 0;// 当前图片索引
public Game1()
{
graphics = new GraphicsDeviceManager(this);
Content.RootDirectory = "Content";
graphics.PreferredBackBufferWidth = 800;
graphics.PreferredBackBufferHeight = 600;
graphics.IsFullScreen = false;
IsMouseVisible = false;
}
/// <summary>
/// Allows the game to perform any initialization it needs to before starting to run.
/// This is where it can query for any required services and load any non-graphic
/// related content. Calling base.Initialize will enumerate through any components
/// and initialize them as well.
/// </summary>
protected override void Initialize()
{
// TODO: Add your initialization logic here
base.Initialize();
}
/// <summary>
/// LoadContent will be called once per game and is the place to load
/// all of your content.
/// </summary>
protected override void LoadContent()
{
// Create a new SpriteBatch, which can be used to draw textures.
spriteBatch = new SpriteBatch(GraphicsDevice);
// TODO: use this.Content to load your game content here
defaultFont = Content.Load<SpriteFont>("DefaultFont");
backgoundColor = Color.CornflowerBlue;
mouseCursor = Content.Load<Texture2D>("MouseCursor");
buttonNormal = Content.Load<Texture2D>("ButtonNormal");
buttonMoveOver = Content.Load<Texture2D>("ButtonMoveOver");
buttonPressed=Content.Load<Texture2D>("ButtonPressed");
buttonRect = new Rectangle(300, 200,128,128);
button = buttonNormal;
backgroundMusic = Content.Load<Song>("BackgroundMusic");//加载背景音乐
buttonPressedSound = Content.Load<SoundEffect>("ButtonPressedSound");//加载按钮音效
MediaPlayer.IsRepeating = true;//重复播放背景音乐
MediaPlayer.Play(backgroundMusic);//播放背景音乐
//MediaPlayer.Volume = 1;//背景音乐声音大小(0.1f-1.0f)
//MediaPlayer.Stop();
blacksmithJoyTextures = new List<Texture2D>();
for(int i=0;i<30;i++)
{
Texture2D blacksmithJoyTexture;
if (i < 10)
{
blacksmithJoyTexture = Content.Load<Texture2D>("Joy/0_Blacksmith_Joy_00" + i);
}
else
{
blacksmithJoyTexture = Content.Load<Texture2D>("Joy/0_Blacksmith_Joy_0" + i);
}
blacksmithJoyTextures.Add(blacksmithJoyTexture);
}
blacksmithJoyRect = new Rectangle(100, 100, 200, 200);
}
/// <summary>
/// UnloadContent will be called once per game and is the place to unload
/// all content.
/// </summary>
protected override void UnloadContent()
{
// TODO: Unload any non ContentManager content here
}
/// <summary>
/// Allows the game to run logic such as updating the world,
/// checking for collisions, gathering input, and playing audio.
/// </summary>
/// <param name="gameTime">Provides a snapshot of timing values.</param>
protected override void Update(GameTime gameTime)
{
// Allows the game to exit
KeyboardState keyboardState = Keyboard.GetState(PlayerIndex.One);
if(keyboardState.IsKeyDown(Keys.Escape))
{
this.Exit();
}
if(keyboardState.IsKeyDown(Keys.F10))
{
graphics.IsFullScreen = true;
graphics.ApplyChanges();
}
if(keyboardState.IsKeyDown(Keys.F11))
{
graphics.IsFullScreen = false;
graphics.ApplyChanges();
}
if (keyboardState.IsKeyDown(Keys.F12))
{
graphics.PreferredBackBufferWidth = 1920;
graphics.PreferredBackBufferHeight = 1080;
graphics.ApplyChanges();
}
MouseState mouseState = Mouse.GetState();//获取鼠标状态
if(mouseState.LeftButton==ButtonState.Pressed)//判断是否按下了鼠标左键
{
backgoundColor = Color.Red;//将背景设置为红色
if (buttonRect.Contains(mouseState.X, mouseState.Y))//判断鼠标是否移动到按钮上并且按下
{
button = buttonPressed;//将按钮设置为按下状态
buttonPressedSound.Play();//播放按钮音效
}
}
else
{
if (buttonRect.Contains(mouseState.X, mouseState.Y))//判断鼠标是否移动到按钮上
{
button = buttonMoveOver;//将按钮设置为悬停状态
}
else//鼠标不在按钮上
{
button = buttonNormal;//将按钮设置为正常状态
}
backgoundColor = Color.CornflowerBlue;//放开鼠标左键恢复成蓝色
}
mouseCursorPosition = new Vector2(mouseState.X, mouseState.Y);
if (currentFrame >= blacksmithJoyTextures.Count - 1)
{
currentFrame = 0;
}
else
{
currentFrame += 1;
}
// TODO: Add your update logic here
base.Update(gameTime);
}
/// <summary>
/// This is called when the game should draw itself.
/// </summary>
/// <param name="gameTime">Provides a snapshot of timing values.</param>
protected override void Draw(GameTime gameTime)
{
GraphicsDevice.Clear(backgoundColor);//绘制游戏背景
// TODO: Add your drawing code here
spriteBatch.Begin();
spriteBatch.DrawString(defaultFont, "这是我的第一个游戏", Vector2.Zero, Color.White);
//绘制按钮
spriteBatch.Draw(button, buttonRect, Color.White);
spriteBatch.Draw(blacksmithJoyTextures[currentFrame], blacksmithJoyRect, Color.White);
spriteBatch.Draw(mouseCursor,mouseCursorPosition,Color.White);
spriteBatch.End();
base.Draw(gameTime);
}
}
}

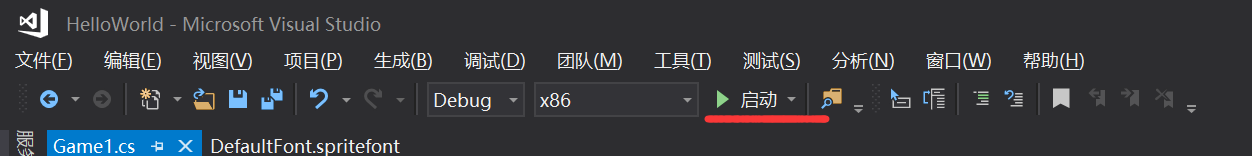

点击【启动】

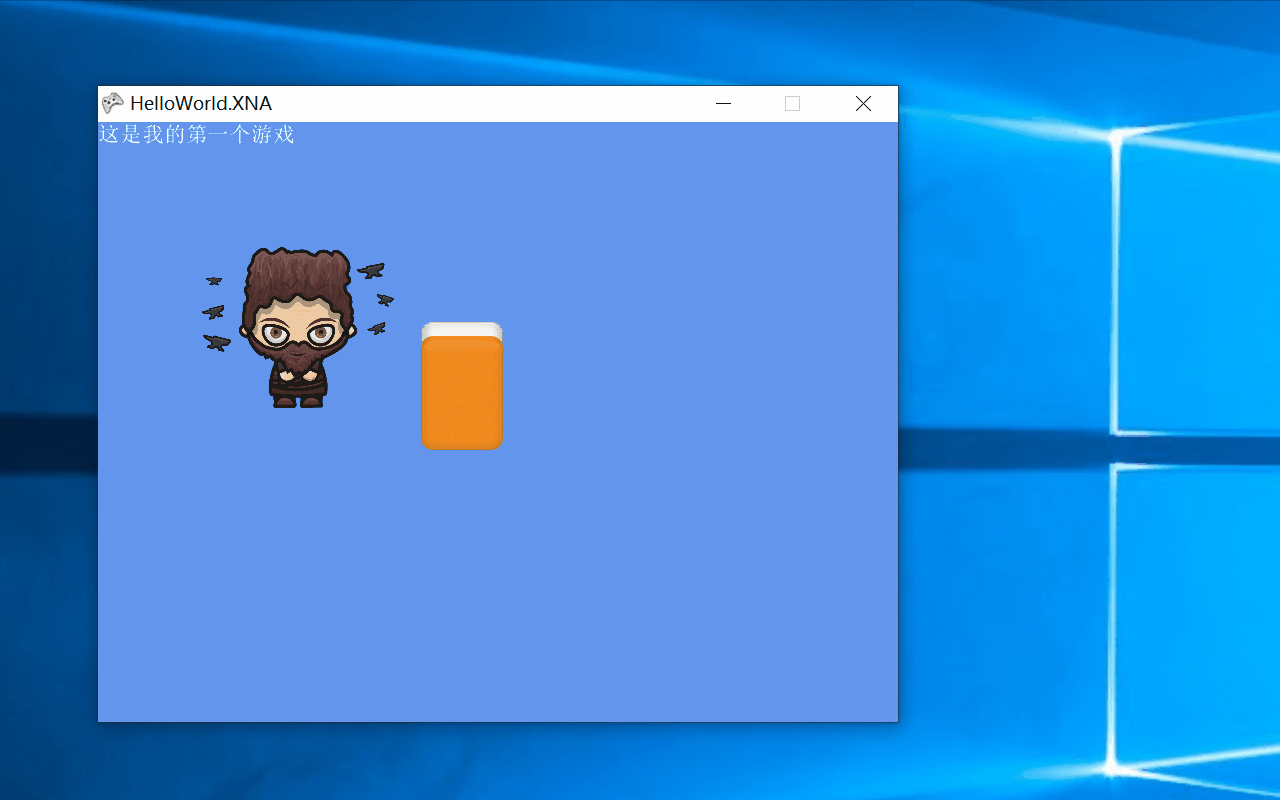

运行效果如下。
最后推荐一个素材网站https://craftpix.net/，可以在里面下载到免费的游戏素材。
